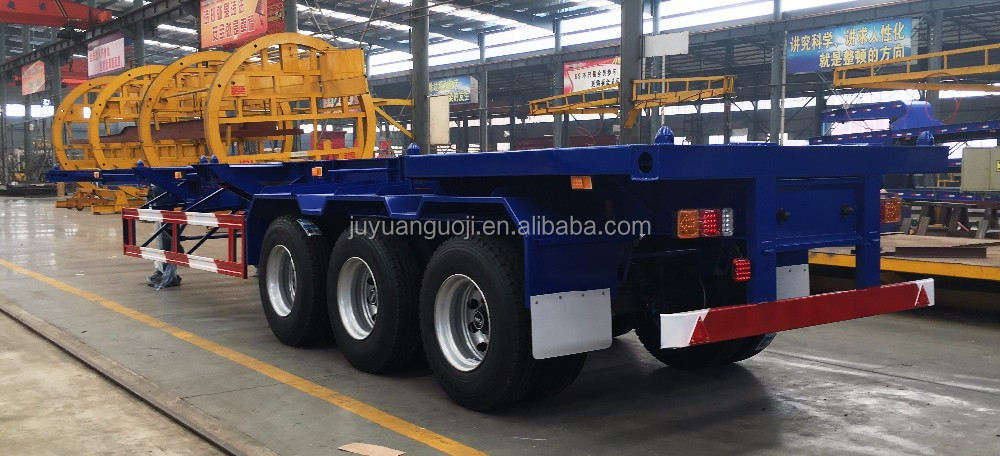

Fuwa Bpw Optional Axle 40 Feet 3 Axles Skeleton Semi Trailer for Container Transportation

Name: Fuwa Bpw Optional Axle 40 Feet 3 Axles Skeleton Semi Trailer for Container Transportation
Brand: AOTONG
Price: 12 USD

Quality Fuwa Bpw Optional Axle 40 Feet 3 Axles Skeleton Semi Trailer for Container Transportation for sale

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 12450X2450X1550 (mm)

Max Payload : 50-80T

Place of Origin : CHINA

Brand Name : AOTONG

Condition : New

Tire Size : 11.00r20 /12r22.5

Axle : Fuwa(Bpw Optional)

Color : As your requirements

Suspension : Mechanical/Air Suspension

Landing Gear : Standard 28Ton

King pin : 2"(50mm)or3.5"(90mm)

Brake System : Dual Line Braking System

Twist locks : 4/8/12 pcs

Usage : 20ft 40ft 44ft 45ft container carrier

MOQ : 1 UNIT

Price : $12,000.00/sets >=2 sets

Certification : ISO,CCC

Packaging Details : Exporting Standard

Delivery Time : 25 days

Payment Terms : TT

Contact Now

Product Description

Fuwa Bpw Optional Axle 40 Feet 3 Axles Skeleton Semi Trailer for Container Transportation

Product Application

Suitable for sale to the transportations for ships, ports, airlines, roads, transfer stations, bridges, tunnels, and other multimodal transport matching logistical systems.

SPECIFICATIONS FOR 40ft 50 TON SKELETON CONTAINER SEMI TRAILER
Dimension:1250025001500mm(LXWXH) optional	MOQ	2 units
THREE-AXLE CARGO 40FT CONTAINER SEMI TRAILER (flatbed /Skeleton optional) Name of product: Three-Axle Container Semi-Trailer DIMENSIONS: Overall length 12,500mm Overall height 1,550mm Overall width 2,560mm Side board 800mm Dimensions mentioned here are approximations. CAPACITY: Rear axles payload 40,000kgs Kingpin payload 16,500kgs Total payload 56,500kgs FRAME: Heavy duty two main fabricated I Beam construction (material Q345B/ST52-3)and Londitudnal wise reinforced with Rolled channels, and cross wise bended tapered brackets(material Q235), the deck will covered with 3 mm thickness steel, the frame will be reinforced in strength and high tensile. ISO Standards Twist Locks 12 Units for delivery 140, 220,120 ISO Standard container RUNNING GEAR:* High quality Trailer Axle 13Ton Three Units (ISO bolts); Tyres 12.00R20 12 Pcs, Brand Chinese Famous; Wheel Rim 8.0 12 Pcs; Brand Chinese Famous. KING PIN: 2" or 3.5 inch bolted type, . ELECTRIC SYSTEM: Complete 24V system in explosion proof installation, 7-Pin socket, lamps in accordance with the Standards of China; ACCESSORIES: Spare tyre carrier winch type 2 Nos. Tool box 1 Nos; Rubber mud flaps; Steel mudguards; Steel side protection; Other terms in accordance with the Standards PAINTING: Before the painting surfaces and accessories are made smooth and then cleaned with a mixture of chemicals; Steel blasting completely; Znic-rich Primer Painting + Surface Painting; Painting in colors in according to customer's wish.

Main Features

1) 20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional with twist locks

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) flatbed or skeleton chassis type

4) Main beam:500mm height,140mm Q345 or T70 hight strong steel

5) Suspension; Rigid, single point or air suspension

6)Axles number: 2 3 4 axles.

7)Design type; Straight beam,Gooseneck beam

8)Jost landing gear, FUWA axles and tir-angle tires

Certifications

Detailed Images

Machine Parts

Landing leg:24tons/28tons,JOST brand

King pin: 50mm/90mm,Jost brand

Suspension: leaf spring suspension/Air suspension

All spare parts design and brand can be customized accordting to your budget!!!

Main Features

Main beam: height 500mm,

upper plate :14mm thickness

middle plate:6/8mm thickness

Lower plate:16mm thickness
Material: carbon steel Q345B
Original:

With advanced and proven technique in design, exploitation and production, our products with the brand "AOTONG" are enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia,specially get good feed back from Kenya,Tunisia,Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, Mozambique, Congo, Nigeria, Russia,Singapore,South Korea etc. .

Main Features

1. Advanced production line and techinical equipment for container trailers. Stock avaliable , Delivery time within 25 days.

2.Make to order : We have capacity to design and produced skeleton trailer according your customers specific requirements.

Company Profile

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1250020002500(LXWXH)
Weight	11 T(2 units chassis)
Packaging Details	By Containers 1.If the trailer length within 12m(40ft HQ),we can load it directly into the containers; 2.If the trailer length is more than 12m(40ft HQ),we need to cut the back and load it into the containers. 3.Professional loading team to reduce the damages

Packaging
Size	1250025003500mm(LXWXH)3 units chassis
Weight	16.5 T
Packaging Details	By Bulk Ship The most chosenable shipping method.Less damages and appropriate cost.We will lower the landing gears and detach the tyres to reduce the total volume and save the freight cost for you. pack it according to customers special request.
